United States
Bell AH-1S Cobra
| type |
|---|
|
Plastic model kit |
This boxed set contains:

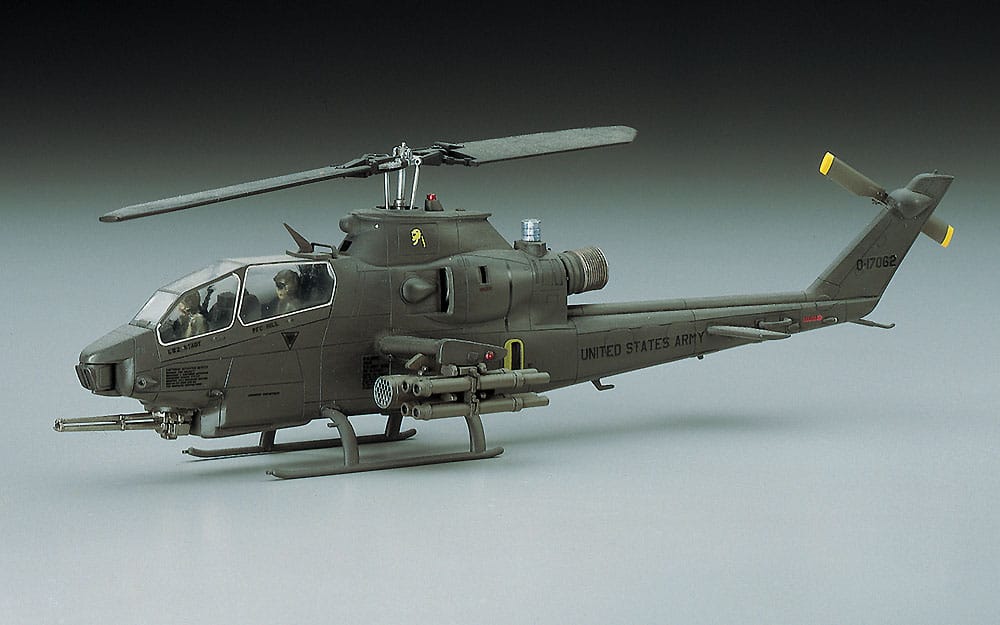

- 1 x Bell AH-1S Cobra 1/72 scale attack helicopter [E Series]
United States Army Aviation
The Bell AH-1S Cobra is an attack helicopter for land-to-force support.
The Cobra series during the Vietnam War.
Transport helicopter CH-47 As an escort for Chinook,
It was developed from UH-1 Irokoi.
The main improvement points from Iroquois are concentrated on the front of the fuselage.
Reduce the front area of the torso of Iroquois to about one-third,
Pilot, place the gunner in tandem,
Added stabilizer wing on both sides of the fuselage side
Equipped with enhanced stability during high-speed flight and missiles, rockets, etc.
It is used as a platform.
The main rotor is a door hinge rotor,
The speed and mobility of the aircraft have been improved.
The basic armament is the Emerson TAT102 turret mounted on the model
7.62mm machine gun or 20mm machine gun,
The nose turret linked to the archer's helmet device
Very high-precision shooting is possible.
In addition, because it is a relatively low-speed attack flight in the low sky
In order to be vulnerable to attacks from the enemy,
The cockpit is fully equipped with bulletproof equipment.
The Cobra series is mainly used in the U.S. Army and Marine Corps.
The type and shape are different in the Army and Marine Corps.
The latest type of Army-specific Cobra is the AH-1S Cobra.
This type replaces the engine with the T53-L-703 turboshaft engine,
The power transmission system is being strengthened in line with the increase in the output of the engine.
In addition, the increase in output has given room to the amount of armed mounting.
The maximum armed force is eight TOW missiles, thirty-eight rockets,
It is heavily armed with 20mm triple cannons and 760 bullets on the nose.
In addition AH-1S is licensed production by Fuji Heavy Industries and also in the Ground Self-Defense Force
Deployed as an anti-tank helicopter,
Anti-tank helicopters combined with OH-6 helicopters
It is formed in Hokkaido and other places.
The data
Crew: Two people.
Total length of fuselage: 13.59m
Height: 3.68m
Rotating wing diameter: 13.41m
Weight: 2,940kg
Gross Weight: 4,536kg
Engine: Lycoming T53-L-703 (output 1,800shp) x 1
Maximum speed: 315km/h
Operating lift limit: 3,720m
Range: 507km
Fixed armament: 20mm cannon
External Governor-Armed: TOW missile x 8 rockets x 38
